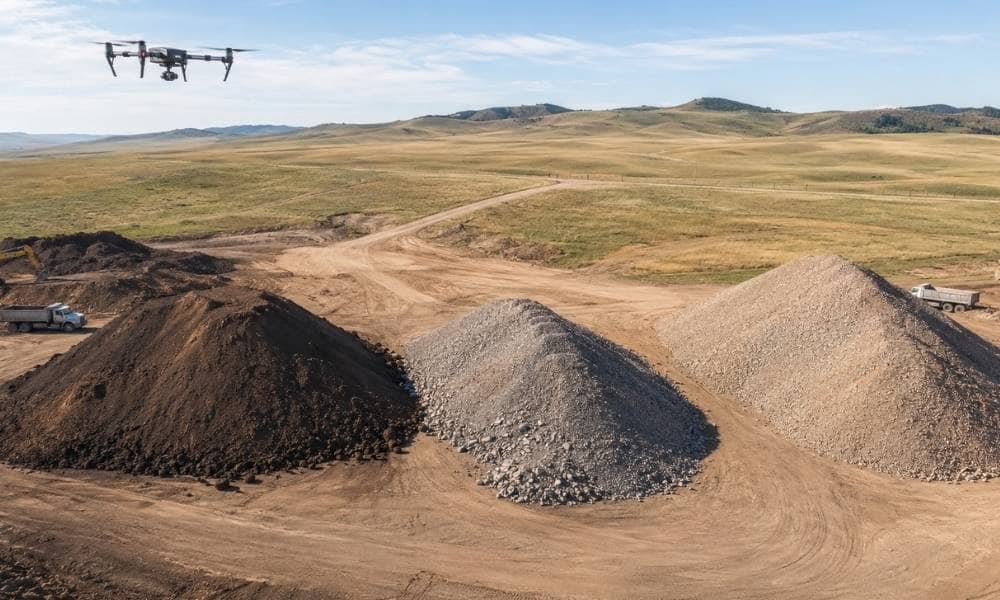

Contractors move a lot of material during a single project. Dirt piles grow and shrink week to week on many job sites. A drone survey gives you a clear record of stockpile size and shape without walking every pile with a tape measure.
Documenting Stockpile Volumes Before a Construction Project Moves Forward
Before dirt gets hauled, sold, or spread across a site, a drone survey captures an aerial record of each pile. This applies to soil, gravel, aggregate, and demolition debris.
The drone flies a grid pattern over the stockpile area. It takes overlapping photos from above. Software stitches those photos into a 3D model of the site. That model shows pile height, shape, and location at the moment of the flight.
This matters most at the start of a project. Once material moves, there’s no way to go back and measure what was there. A flight at the outset gives the contractor, the property owner, and any lender or inspector a shared record to work from.
Schedule the flight before hauling begins. If a truck already pulled a load before the drone shows up, the numbers won’t match what was actually there at project start.
Capturing the Shape and Footprint of Each Stockpile
Most job sites store more than one material at a time. Topsoil sits near gravel. Crushed rock sits near demolition debris. A drone survey shows where each pile starts and stops.
This matters when piles sit close together or overlap at the base. Aerial imagery combined with the 3D model lets a surveyor trace the footprint of each pile on its own. That separation matters for billing, inventory counts, and site planning.
A ground-level photo can’t show this well. From the ground, one pile blocks the view of the next. From above, the site layout is easy to read.
Turning Drone Survey Data Into Volume Estimates
Aerial photos alone don’t give you a volume number. A surveyor needs ground control points, known coordinates set on the ground before the flight, to tie the aerial data to real-world measurements.
Once the model is tied to ground control, a surveyor can calculate the volume of each pile in cubic yards. That number depends on how the base of the pile is defined and what surface is used for the calculation.
Talk with your surveyor before the flight. Ask what output you need: a volume report, a topographic file, or both. Ask what accuracy the project calls for. A stockpile count for internal tracking doesn’t need the same accuracy as a volume figure tied to a payment dispute.
What to confirm before the flight
- The purpose of the volume figure (billing, inventory, dispute)
- The accuracy level the project needs
- Whether ground control points are required
- The file format for the final output
Comparing Material Quantities Between Project Stages
A single flight gives you a snapshot. Repeat flights let you track change over time.
Contractors often fly before and after grading, before and after a major haul, or at set points tied to a payment schedule. Comparing two flights shows how much material moved between them.
This works well for tracking use against a budget, checking a hauling contractor’s reported loads, or settling a disagreement about how much material left a site. The comparison only holds up if both flights use the same ground control points and the same reference surface.
Planning Flights Around Wind, Access, and Active Equipment
Wyoming wind changes fast. Many small drones can’t fly safely above certain wind speeds, and gusts common on the plains can ground a flight with little warning. Morning flights, before afternoon wind picks up, often work better on open sites.
Site access matters too. A pilot needs a safe launch and landing spot, clear of overhead lines and away from moving equipment. On active job sites, that means talking with the site superintendent before the drone goes up.
Trucks, loaders, and workers move fast on a job site. A drone has to stay clear of that traffic. Most survey teams schedule flights during a break in hauling or work with the site foreman to pick a short window when equipment activity slows.
Coordinating with your site team
- Share the daily schedule with the pilot ahead of time
- Pick a launch and landing zone away from equipment paths
- Set a radio or phone contact for the flight window
- Reschedule if wind or dust conditions change that morning
Frequently Asked Questions
Can a drone survey measure gravel, soil, or aggregate stockpiles?
Yes. A qualified survey team can collect aerial data and prepare mapping or volume information for visible stockpiles, depending on the project scope and required accuracy.
Do stockpile volume estimates require ground control points?
Often, yes. Ground control or other survey-grade positioning methods may be needed when the project requires dependable coordinates and elevation data. The surveyor should determine the proper setup.
How often should a construction site update its stockpile quantities?
It depends on how quickly materials are moved and how the figures will be used. Some projects need updates after major hauling activity, while others only need records at specific billing or planning milestones.
Can a drone survey be completed while construction equipment is operating?
It may be possible, but the flight must be coordinated with the site superintendent. Equipment movement, people, dust, and restricted work zones all affect flight safety and data collection.
What should a contractor provide before scheduling a drone survey?
Provide the site address, approximate stockpile locations, access instructions, the purpose of the survey, requested deliverables, and any project-specific accuracy or reporting requirements.
